Assembly Options

All Flex has comprehensive assembly capabilities to meet your circuit assembly needs. Whether your needs are highly accurate surface mount placement, stiffener assembly, potting and bonding and electrical testing, All Flex handles the job from concept to completion. We have the experience, dedication and technology to handle your most difficult assembly challenges.

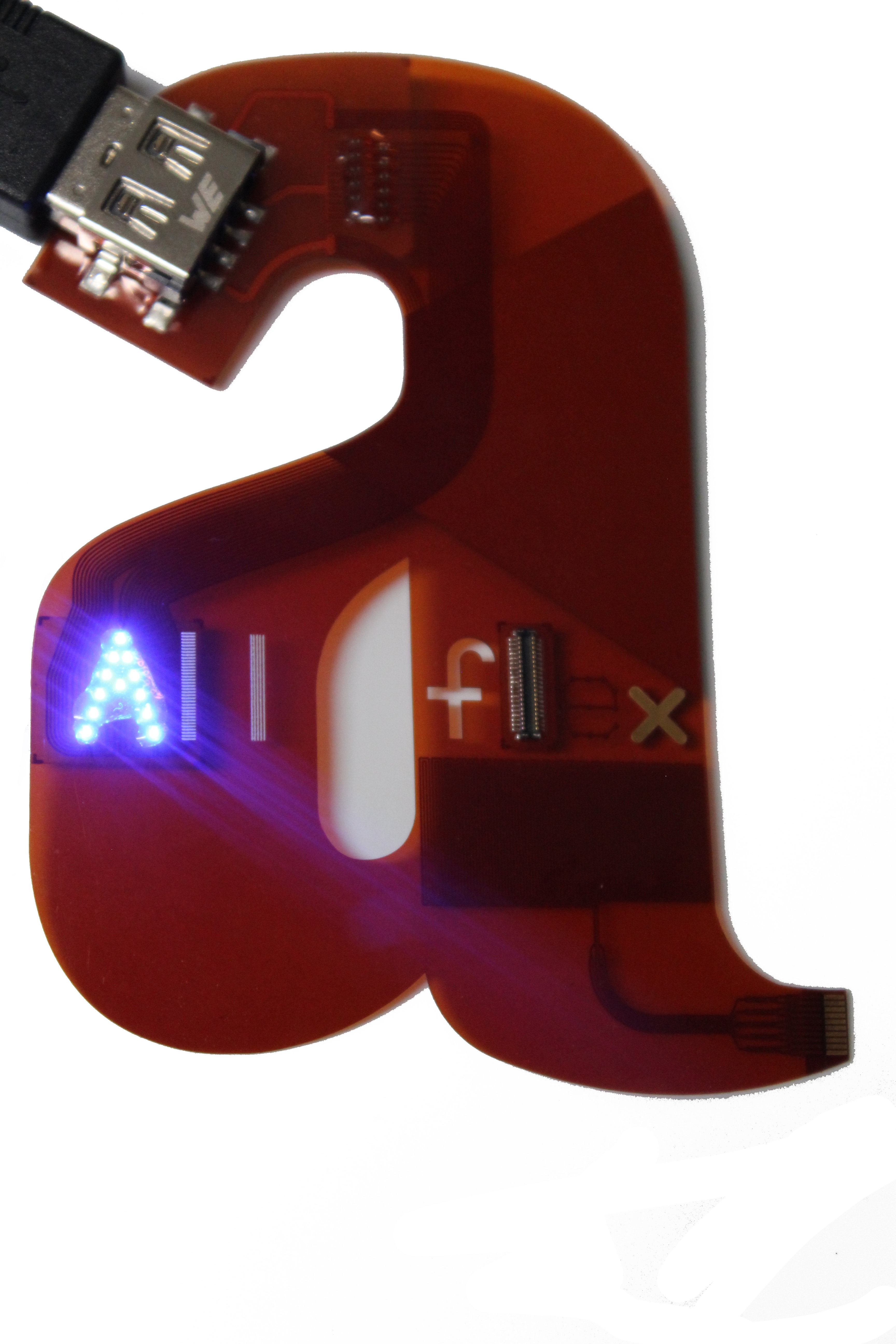

All Flex Adds Value With Complex Assembly Combinations

  • Surface mount components down to 0201
  • Precise vision system allows placement accuracy to .001″
  • Fine pitch capability to .5mm pitch
  • Leaded devices
  • Tactile domes
  • Staked terminals
  • Unlimited component configurations
  • RoHS compliant assembly
  • Virtually all SMT components including discretes, SOICs, PLCCs, QPPs, & BGA’s
  • Auto fiducial correction

Automated Assembly: Solder Screener

  • Automated screening of solder onto arrays/panels using a solder stencil
  • Lead and lead free capability

Automated Assembly: Selective Soldering

  • Automated ability to solder leads on through hole connectors
  • Lead and lead free capability

Hand Assembly

  • Operators certified to J-STD
  • Lead and lead free capability
  • Work cell format
  • ESD controls

Other All Flex Added Value Capabilities

  • Through hole assembly
  • Flexible circuit folding and forming
  • Electrical testing
  • Heat sinks
  • Nomenclature screening
  • Stiffener placement
  • Design & manufacturing support – concept to completion

Circuit Testing Capability

  • Solderability
  • Ionic contamination
  • Dimensional tolerance
  • Thermal testing
  • Dielectric net-to-net
  • Insulation resistance (IR)
  • Microsections
  • Continuity
  • Inductance
  • Capacitance
  • Resistance
  • Impedance
Termination Methods

There are many ways to terminate a flexible circuit. Following is a list of the most common methods of termination for consideration.

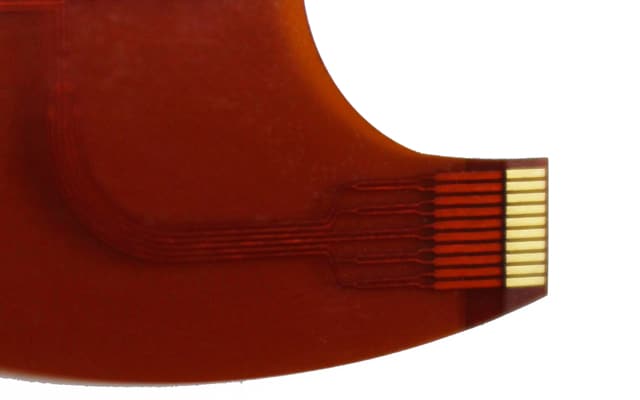

Zif Connectors

Zero Insertion Force connectors are becoming an increasingly popular method to terminate a flexible circuit. Use of a ZIF connector eliminates the need for a mating connector. The flex end “mates” into the connector usually located on the rigid board.

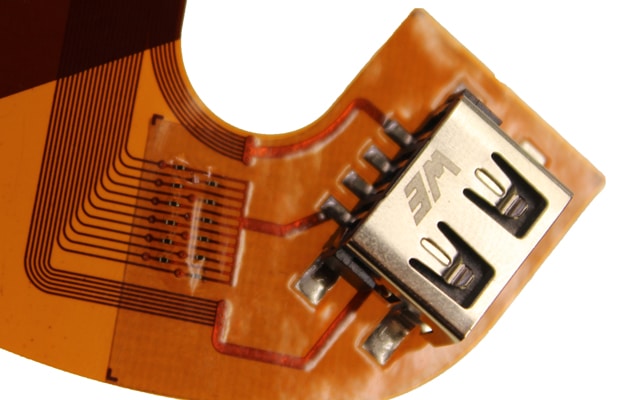

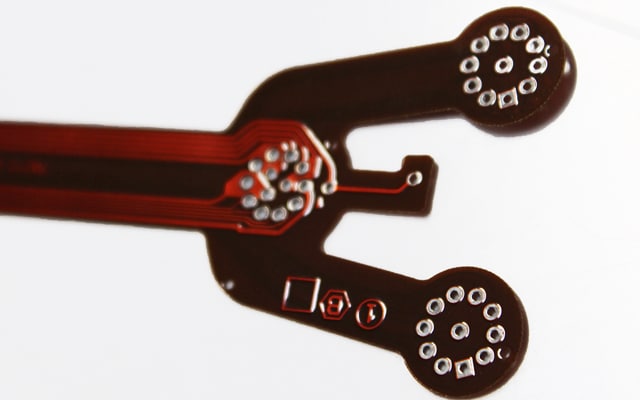

Through-Hole (or Surface Mount) Connectors

These are the traditionally used connectors in today’s circuit boards.

Sculptured (Unsupported) Flexible

  • Robust and durable termination
  • Custom built to meet your requirements for pitch, length, and location
  • Constructed with most copper and substrate thicknesses
  • Retains flexibility during installation

All Flex Power Flex

  • Copper to .010″ (.254 mm) allows for higher current capability in a smaller space
  • Custom built to meet your requirements for pitch, length and location
  • Selective etching allows for more robust termination while increasing flexibility in selective areas.

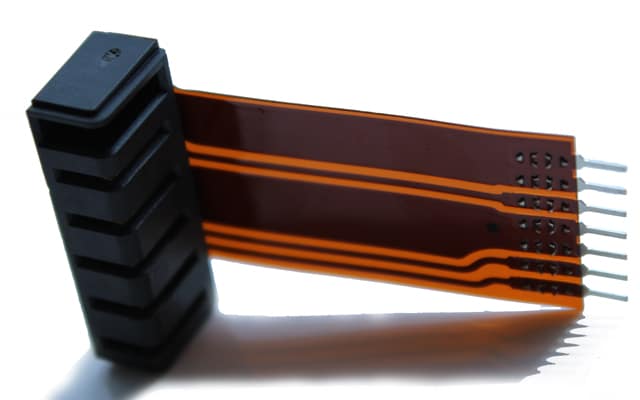

Crimped Contacts & Displacement Connectors

  • Contacts crimp through the dielectric material into the copper conductor
  • Contacts are available for .100″ (2.54mm) or .050″ (1.27mm)
  • Centerline housings are also available to encapsulate the contact

Additional Custom Termination Options

  • High Density Circular Connectors
  • D Subminiature Connectors
  • Surface Mount Connectors and Component
  • Pin and Socket Connectors
  • Leaded Components
